Lug Butterfly Valve

Product variants

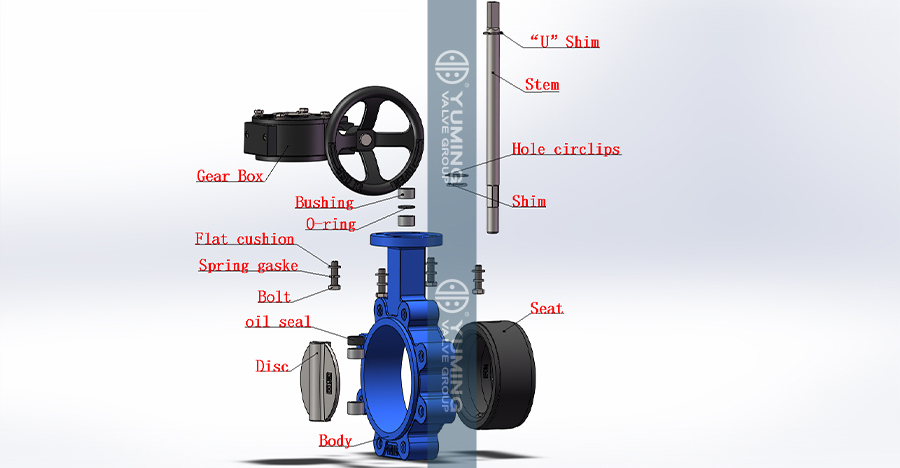

Worm Gear Lug Butterfly Valve

Size Range： 2”~48”(DN50-DN1200)
Pressure： PN10,PN16
Body Materials： Ductile Iron
Disc Materials： Stainless Steel,
Seat Materials： PTFE,NBR, EPDM
Connection： Lug
OP： Worm gear
Special designing： Custom painting

INTRODUCTION
Product Advantages
1、The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;
2、All products can provide the pressure test: All Yuming  products can provide the pressure test report before leaving the factory.
3、High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times
4、Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal; The upper and lower shaft holes of DN350 and above large diameter valves are designed with packing box structure, and the packing is pressed by the gland to realize sealing.
5、Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.



1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
6.Anti-static device. Fire safe design available,
7. Blow-out proof Stem.
8.Suitable media: water, oil, Gas and some corrosive liquids.

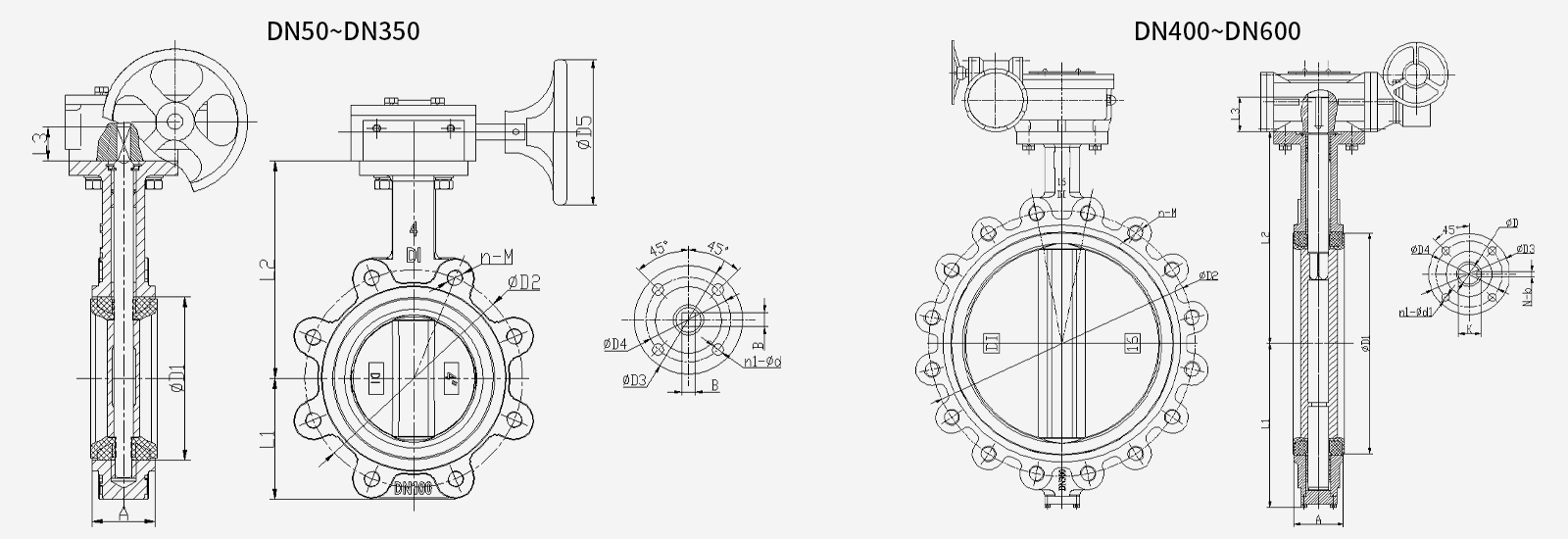

DATA

DN50–DN350

DN A D1 L1 L2 L3 B PN16 PN10 150LB φD3 φD4 n1-φd D5
              D2 n-M D2 n-M D2 n-M
2″ DN50 42 73.3 54 161 25 9 125 4-M16 125 4-M16 120.7 4-5/8″ 65 50 4-8 135
2.5″ DN65 44 86 62 175 25 9 145 4-M16 145 4-M16 139.7 4-5/8″ 65 50 4-8 135
3″ DN80 45 100.9 82 181 25 9 160 8-M16 160 8-M16 152.4 4-5/8″ 65 50 4-8 135
4″ DN100 51.5 132 99 200 28 11 180 8-M16 180 8-M16 190.5 8-5/8″ 90 70 4-10 135
5″ DN125 54 156 114 213 28 14 210 8-M16 210 8-M16 215.9 8-3/4″ 90 70 4-10 135
6″ DN150 55 185 129 236 28 14 240 8-M20 240 8-M20 241.3 8-3/4″ 90 70 4-10 135
8″ DN200 59 235 150 260 33 17 295 12-M20 295 8-M20 298.5 8-3/4″ 125 102 4-12 270
10″ DN250 66 289 186 292 33 22 355 12-M24 350 12-M20 362 12-7/8″ 125 102 4-12 270
12″ DN300 76 341 218 337 33 22 410 12-M24 400 12-M20 431.8 12-7/8″ 125 102 4-12 270
14″ DN350 76 372 242 368 45 22 470 16-M24 460 16-M20 476.3 12-1″ 125 102 4-12 270

 DN400–DN600

DN A D1 L1 L2 L3 φD N-b K PN16 PN10 150LB φD3 φD4 n1-φd1
                  D2 n-φd D2 n-φd D2 n-φd
16″ DN400 86.5 436 320 403 52 33.15 1-10 36.2 525 16-M27 515 16-M24 539.8 16-1″ 175 140 4-18
18″ DN450 104.6 487 351 415 52 38 1-10 41 585 20-M27 565 20-M24 577.9 16-1 1/8″ 175 140 4-18
20″ DN500 130 532 386 466 64 41.15 1-12 44.2 650 20-M30 620 20-M24 635 20-1 1/8″ 175 140 4-18
24″ DN600 152 651 446 525 70 50.65 1-16 54.7 770 20-M33 725 20-M27 749.3 20-1 1/4″ 210 165 4-22

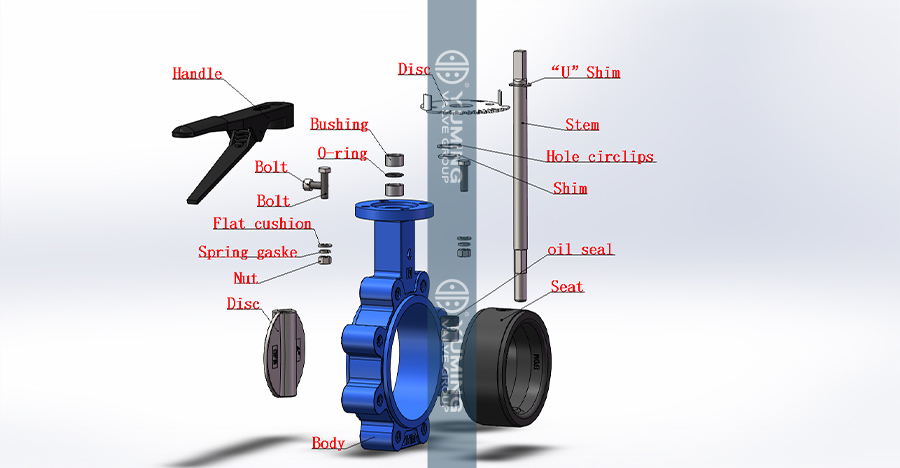

Lug Butterfly Valve

Size Range： 2″-50″(DN50-DN1250)
Pressure： PressurePN10, PN16, Class150
Body Materials： Ductile iron
Disc Materials： DI/ CF8,CF8M
Seat Materials： PTFE,NBR, EPDM,
Connection： Lug
OP： Hand lever/worm gear/
Applicable Medium： Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.
Application field： Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

INTRODUCTION
Product Advantages
1、The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;
2、All products can provide the pressure test: All Yuming  products can provide the pressure test report before leaving the factory.
3、High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times
4、Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal;
5、Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
6、Ductile iron handle: The handle is made of ductile iron, compared with Stamping handle, ductile iron handle is more better strength, stronger corrosion resistance and much more durable. The end handle with half-round structure design, is no edges and corners and feels very good.



Vertical center line disc
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

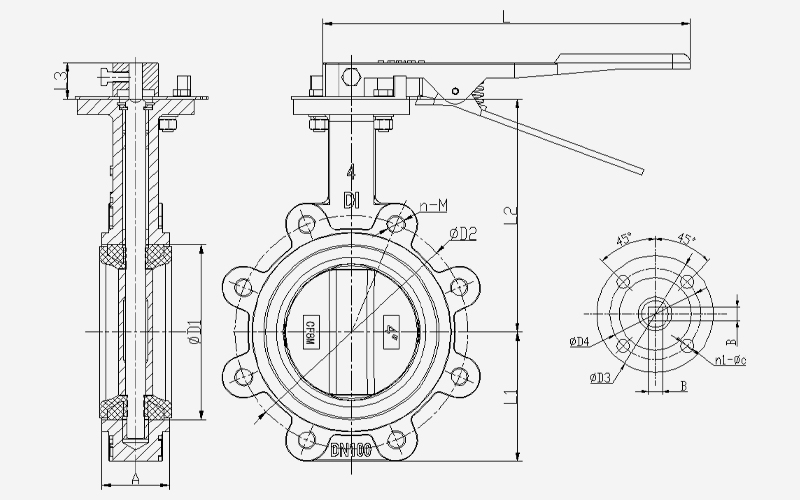

DATA
DN A D1 L1 L2 L3 B PN16 PN10 150LB φD3 φD4 n1-φd L
D1 n-M D1 n-M D1 n-M
2″ DN50 42 73.3 54 161 25 9 125 4-M16 125 4-M16 120.7 4-5/8″ 65 50 4-8 249
2.5″ DN65 44 86 62 175 25 9 145 4-M16 145 4-M16 139.7 4-5/8″ 65 50 4-8 249
3″ DN80 45 100.9 82 181 25 9 160 8-M16 160 8-M16 152.4 4-5/8″ 65 50 4-8 249
4″ DN100 51.5 132 99 200 28 11 180 8-M16 180 8-M16 190.5 8-5/8″ 90 70 4-10 283
5″ DN125 54 156 114 213 28 14 210 8-M16 210 8-M16 215.9 8-3/4″ 90 70 4-10 283
6″ DN150 55 185 129 236 28 14 240 8-M20 240 8-M20 241.3 8-3/4″ 90 70 4-10 283
8″ DN200 59 235 150 260 33 17 295 12-M20 295 8-M20 298.5 8-3/4″ 125 102 4-12 390
10″ DN250 66 289 186 292 33 22 355 12-M24 350 12-M20 362 12-7/8″ 125 102 4-12 390
12″ DN300 76 341 218 337 33 22 410 12-M24 400 12-M20 431.8 12-7/8″ 125 102 4-12 540

Stainless Steel Lug Butterfly Valve

Size Range： 2~100″(DN50~DN2500）
Pressure： PN10,PN16，Class150
Body Materials： SS304, SS316
Disc Materials： CF8,CF8M,BRONZE
Seat Materials： NBR, EPDM,PTFE
Connection： Lug
OP： Iron handle

INTRODUCTION
Features
●Single Eccentric Disc-Shaft
●Anti-Blow Out Stem
●Bi-Directional
●Fire safe Design
●Low Friction Body Seat
●Zero Leakage

Adoptive Standards
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

Application
● Water Treatment Plant
●Drilling Rigs
● Paper Industry
●Gas Plant
● Sugar Industry
●Cooling Water Circulation
● Breweries
● Heating & Air Conditioning
● Chemical Industry
● Pneumatic Conveyors
● Waste Effluent Treatment Plant
● Compressed Air


DATA

SIZE

A

B

C

L

ANSI 150B

DIN PN 10

DIN PN 16

JIS 10K

ISO 5211

Top
Flange

mm

in

øK

N-M

øK

N-M

øK

N-M

øK

N-M

øD

øD1

N-ød

40

1.5″

70

164

32

33

98.5

4-1/2″-13UNC-2B

110

4-M16

110

4-M16

105

4-M16

65

50

4-ø8

F05

50

2″

80

169

32

43

120.6

4-5/8″-11UNC-2B

125

4-M16

125

4-M16

120

4-M16

65

50

4-ø8

F05

65

2 1/2″

89

176

32

46

139.7

4-5/8″-11UNC-2B

145

4-M16

145

4-M16

140

4-M16

65

50

4-ø8

F05

80

3″

95

183

32

46

152.4

4-5/8″-11UNC-2B

160

8-M16

160

8-M16

150

8-M16

65

50

4-ø8

F05

100

4″

114

201

32

52

190.5

8-5/8″-11UNC-2B

180

8-M16

180

8-M16

175

8-M16

90

70

4-ø10

F07

125

5″

127

214

32

56

215.9

8-3/4″-10UNC-2B

210

8-M16

210

8-M16

210

8-M20

90

70

4-ø10

F07

150

6″

139

229

32

56

241.3

8-3/4″-10UNC-2B

240

8-M20

240

8-M20

240

8-M20

90

70

4-ø10

F07

200

8″

175

257

45

60

298.4

8-3/4″-10UNC-2B

295

8-M20

295

12-M20

290

12-M20

125

102

4-ø12

F10

250

10″

203

280

45

68

361.9

12-7/8″-9UNC-2B

350

12-M20

355

12-M24

355

12-M22

125

102

4-ø12

F10

300

12″

242

327

45

78

431.8

12-7/8″-9UNC-2B

400

12-M20

410

12-M24

400

16-M22

125

102

4-ø12

F10
