SERCON FILTER

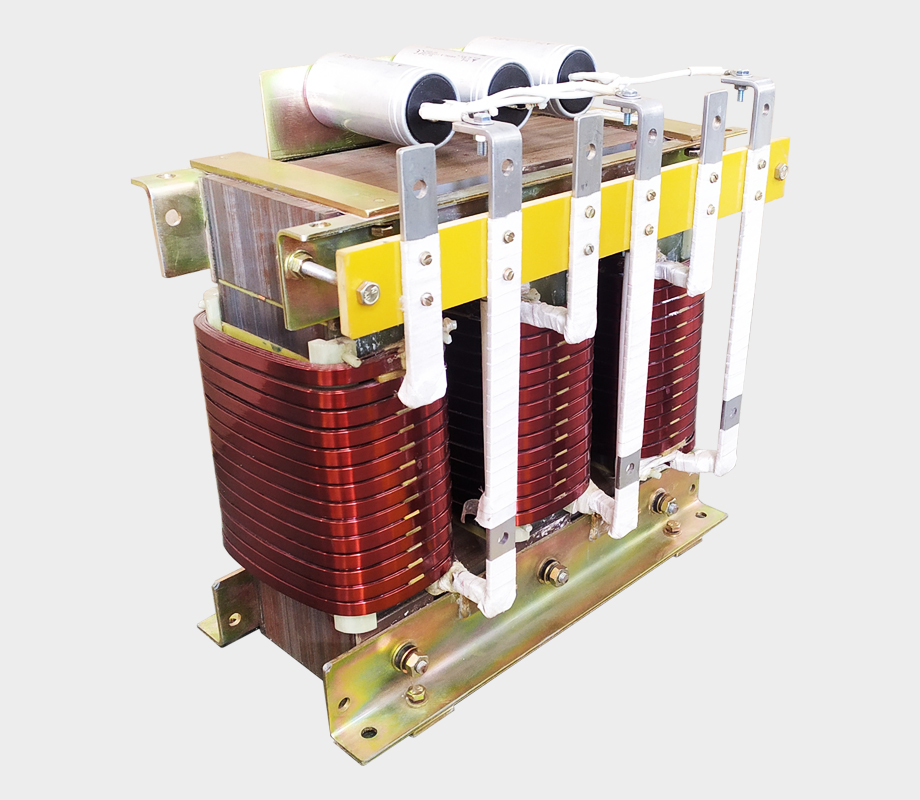

Sinewave Filters

Range:

  • For 0.5kW to 800kW VFD’s

Construction:

  • Epoxy Resin Class H, Vacuum Impregnated Reactors
  • Enclosed / IP 00
  • CE Marked Capacitors of Reputed Make

Application:

  • To filter the distorted voltage & current waveform of PWM output of inverters of VFD’s.
  • To reduce the dv/dt & Voltage spike at motor terminals occurring due to long cable lengths.

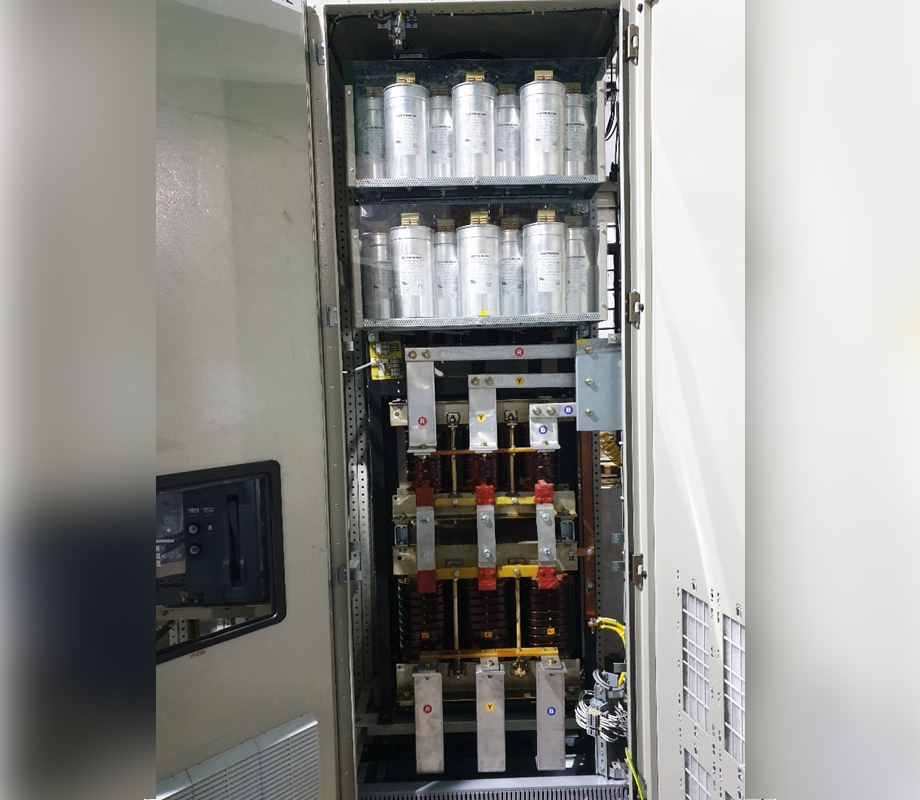

Passive Harmonic Filters

Range:

  • For 0.5kW to 1000kW VFD’s

Construction:

  • Epoxy Resin Class H, Vacuum Impregnated Reactors
  • Enclosed / IP 00
  • CE Marked Capacitors of Reputed Make

Application:

  • To reduce the THD to <5% as per IEEE 519-2014 norms in VFD panels & other Harmonic generating systems.
