SERCON Iron Core Reactor

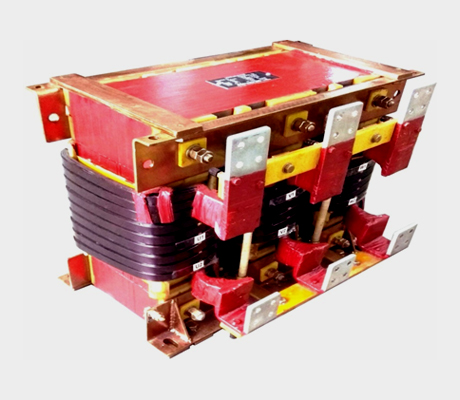

Line/Load Reactors

Range:

  • Generally, Up to 3000A
  • CE Marked from 3.5A to 1660A

Construction:

  • Copper/ Aluminium Wound
  • CRGO Grade Lamination
  • Wall/ Base Mounted
  • Terminal Blocks/ Busbars
  • Epoxy Resin Class H, Vacuum Impregnated
  • Dry Type

Application:

  • Line Reactors are used in series before the VFD for Harmonic Mitigation in VFD panels.
  • Load Reactors are used after the VFD to limit spikes of dv/dt in VFD Panels.

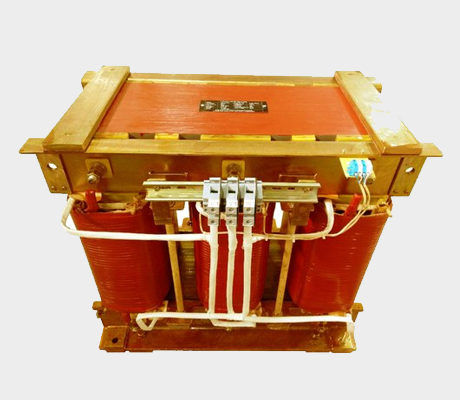

Shunt Reactors

Range:

  • Customized

Construction:

  • Copper/ Aluminium Wound
  • CRGO Grade Lamination
  • Wall/ Base Mounted
  • Terminal Blocks
  • Epoxy Resin Class H, Vacuum Impregnated
  • Dry Type

Application:

  • To reduce Ferranti effect in long distance transmission lines.
  • To compensate for the reactive power required by Low Voltage Capacitor Test Facilities.

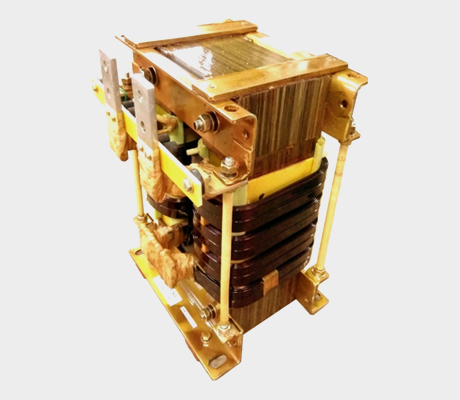

DC Filter Reactor

Range:

  • Up to 3000A

Construction:

  • Copper Wound
  • CRGO Grade Lamination
  • Wall/ Base Mounted
  • Terminal Blocks/ Busbars
  • Epoxy Resin Class H, Vacuum Impregnated
  • Dry Type

Application:

  • Harmonic Mitigation in DC Power Supply Systems.

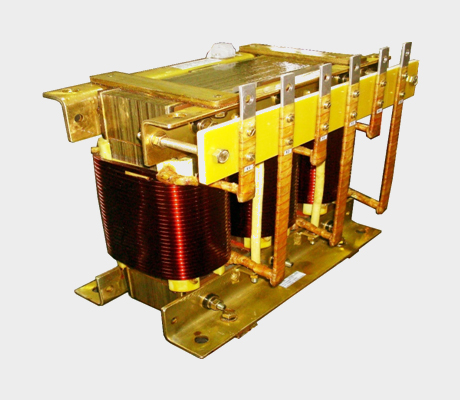

Detuned Reactor

Range:

  • Customized 6% / 7% / 14%

Construction:

  • Copper/Aluminium Wound
  • CRGO Grade Lamination
  • Wall/ Base Mounted
  • Terminal Blocks/ Busbars
  • Epoxy Resin Class H, Vacuum Impregnated
  • Dry Type

Application:

  • To Detune the Capacitor bank used in LV APFC Panels.
